500X Holding Pressure /Relief Pressure Valve



\          Place of Orign :China
        Product name: 500X Holding Pressure /Relief Pressure Valve







\


Structure And Purpose:
500X Pressure Discharge & Sustain Valve is used in the pipeline system to prevent of surpassing pressure or to keep the pressure of it, to reduce the water hammer’s shock after the pump is closed and also used as a water hammer remover in the large water supply system. A self cleaning filter screen is placed on the inlet of the valve’s control system, which stops the suspension grains of the bigger specific gravity and diameter from going into the system by means of the bigger specific gravity of the fluid to ensure the main valve’s water supply pressure at the upstream at the set value, and to get the system circulated smoothly without any resistance. This valve features by sensitive open-close, safety, reliability, stable motion and long duration.
Characteristics
The body uses full passage streamline design, of a small fluid resistance and a heavy flow.this valve can be used as either a pressure releasing or holdingvalve.when used as the former,it can release the pressure surpassing the safe value set with the pilot valve and keep the pressure inside of the pipeline below the safe value to prevent system against danger due to an excessively high water pressure;while used as the latter,it can keep the upstream water supply pressure of the main valve over some set value,this is because water supply to the downstream can not be done,unless the upstream is higher than the set value,in order to make sure of he upstream water supply pressure of the main valve.
 Principle:
The inlet side of the main valve is connected to the pilot valve via a control pipe.when the pressure on the said side is over the one set with the pilot valve,the pilot valve is opened to release the pressure in the upper cavity of the diaphragm and the main valve disc is opened accordingly.when the pressure of the main valve is released to the set one,the pilot valve is closed,so does the main valve.
Materials of major parts:
Name of parts Material of parts
Body & cap Ductile iron
Valve seat & valve disc Brass
Valve stem Stainless steel
Spring Stainless steel
               Surface EPOXY
Valve sealing EPDM/NBR

Performance specification:
Normal pressure (Mpa) Body test pressure
(Mpa)
Sealing test pressure
(Mpa)
Applicable medium Applicable temperature
(°C)
1.0 1.5 1.1 water
0~80
1.6 2.4 1.76
2.5 3.75 2.75

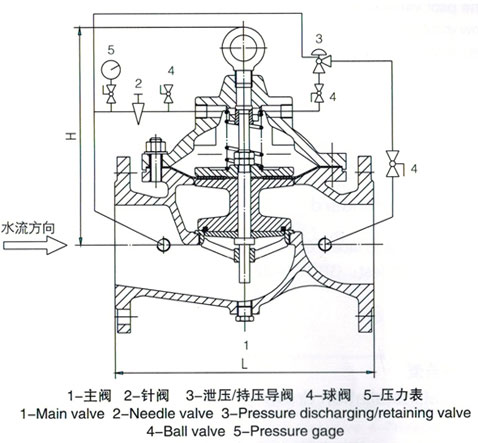

 Main size:
DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L 215 220 250 290 310 360 430 510 595 630 630 780 900 1100
H 225 300 320 420 450 500 710 770 905 970 1000 780 890 1060

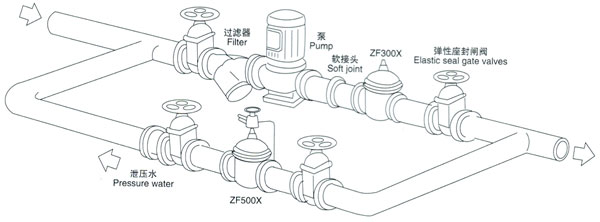

 Typical installation drawing:
