600X Solenoid Control Valve
Place of Orign :China
Product name: 600X Solenoid Control Valve
 | Purpose: This valve is used as an equipment to open and close pipeline and set with a small solenoid valve to control the main valve to open and close can carry out remote and local controls. Characteristics锛 Easy installation and use ,no complicated electric sensing mechanism with the control portion, uneasy to be failed, easily set table. compared with the conventional valves,featuring a small volume, alight weight, a small power, easy repair ,convenient, safe and reliable use. Principle: The pilot valve comes as a solenoid valve and then the solenoid valve is opened,the upper cavity pressure of the diaphragm will be reduced and the main valve is opened.the solenoid valve is closed and so os the main valve. |
| Name of parts | Material of parts |
| Body & cap | Ductile iron |
| Valve seat & valve disc | Brass |
| Valve stem | Stainless steel |
| Spring | Stainless steel |
| Surface | EPOXY |
| Valve sealing | EPDM/NBR |
| Normal pressure (Mpa) | Body test pressure (Mpa) | Sealing test pressure (Mpa) | Applicable medium | Applicable temperature (°C) |
| 1.0 | 1.5 | 1.1 | water | 0~80 |
| 1.6 | 2.4 | 1.76 | ||
| 2.5 | 3.75 | 2.75 |

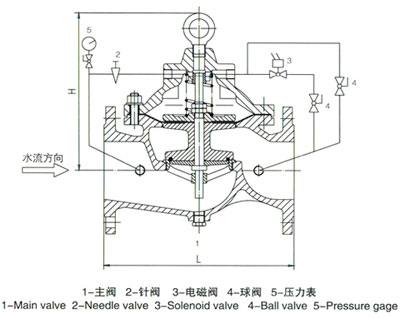

| DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| L | 215 | 220 | 250 | 290 | 310 | 360 | 430 | 510 | 595 | 630 | 630 | 780 | 900 | 1100 |
| H | 225 | 300 | 320 | 420 | 450 | 500 | 710 | 770 | 905 | 970 | 1000 | 780 | 890 | 1060 |
