control valve

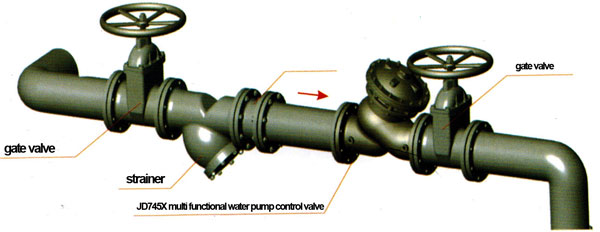

JD745X Multi functional water pump control valve



\          Place of Orign :China
        Product name: JD745X Multi functional water pump control valve







\


Purpose:
Installed at the municipal, construction, steel, metallurgy, petroleum, chemical, gas (gas), food, hospital, power stations, nuclear power in areas such as water, water, diving, sewage pump room and fluid conveying system in the petroleum, chemical industry, electric valve, check valve and water hammer eliminator three equipment functions into an organic whole, can effectively improve the system safety and reliability, meet the requirements of automatic control system.

Characteristics:
1.High safety and reliability. Cavity has quick closing, slowly-closing and three kinds of measures to eliminate water hammer, and fully interlock, won't produce false action.
2. No operational control. When the pump stops, skillfully using the medium at the ends of the valve and the pressure difference as driving medium and control of the power, make the valve automatically according to the requirements of the water pump operation procedures.
3. No professional debugging. Valve action is not affected by water pressure
and liquid level height difference and the influence of water pump flow change, to adapt to the range.
4. Basic no need maintenance, long service life.
5. The energy saving effect is obvious. Using the import side pressure into the inferior vena to support the weight of the diaphragm pressure plate and the valve stem, resistance losses small.
Materials of major parts:
Name of parts Material of parts
Body & cap Ductile iron
Valve seat & valve disc Brass
Valve stem Stainless steel
Spring Stainless steel
               Surface EPOXY
Valve sealing EPDM/NBR

Performance specification:
Normal pressure (Mpa) Body test pressure
(Mpa)		 Sealing test pressure
(Mpa)		 Applicable medium Applicable temperature
(°C)
1.0 1.5 1.1 water
0~80
1.6 2.4 1.76
2.5 3.75 2.75

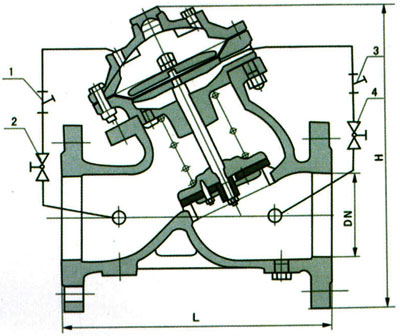

Main size:
DN 50 65 80 100 125 150 200 250 300 350 400 450 500 600
L 235 255 275 325 325 405 490 585 665   695 740 810 895
H 225 300 320 420 450 500 710 770 905 970 1000 780 890 1060
