Y416/Y110reduce Pressure regulator valve
Place of Orign :China
Product name: Y416/Y110reduce Pressure regulator valve
 |
Product Presentation: Djustable pressure reducing valve using the valve pressure feedback mechanism. Both the reduction in the work of the dynamic pressure minus the static pressure can be installed horizontally, can also be mounted vertically in high-rise buildings in hot and cold water supply system can replace the partition in the partition in the water supply tank widely used in the pressure tank and frequency pump water supply system is to solve the high-rise buildings at the bottom of the water supply pressure is too large the ideal product to install this valve simplifies the water supply system equipment, reduce the project cost (the lower the price of the valve), the product by the replacement of some of the parts can be used in otheroccasions required decompression in the industrial production, such as compressed air, steam, oil, etc. |

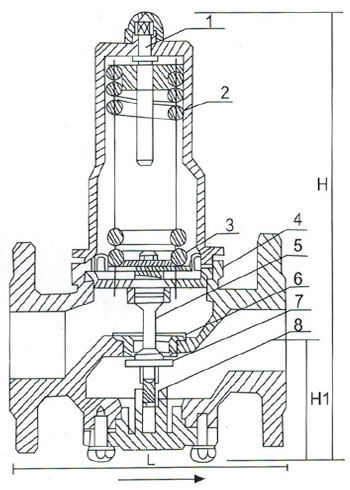

| NO. | Name of parts | Material of parts |
| 1 | Stem | Brass |
| 2 | Spring | Stainless steel |
| 3 | Diaphragm | EPDM/NBR |
| 4 | Body | Ductile iron |
| 5 | Valve plug | Iron/brass |
| 6 | Valve seat | brass |
| 7 | Disc | Brass |
| 8 | Nut | Stainless steel |
| Normal pressure (Mpa) | Body test pressure (Mpa) |
Sealing test pressure (Mpa) |
Applicable medium | Applicable temperature (°C) |
| 1.0 | 1.5 | 1.1 | water | 0~80 |
| 1.6 | 2.4 | 1.76 | ||
| 2.5 | 3.75 | 2.75 |
| DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| L | 100 | 100 | 120 | 150 | 150 | 180 | 280 | 310 | 350 | 520 | 520 |
| H | 215 | 215 | 228 | 228 | 230 | 320 | 450 | 523 | 546 | 823 | 823 |
| H1 | 52 | 52 | 55 | 56 | 56 | 56 | 140 | 150 | 170 | 235 | 235 |
