air valve

CARX composite exhaust valve



\          Place of Orign :China
        Product name: CARX composite exhaust valve







\


Purpose
Installed in high or the product there is breath, is used to eliminate the gas of tube make the pipeline operating normally, such as blackouts, stop the pump. The valve inlet timely, ensure the security of the pipeline.
Characteristics
1, in kai pump, a lot of gas in the excluded by a large caliber pipeline, high pump water conveyance efficiency;
2, when the line trace gases generated in normal water supply, through the small hole on the piston rod, always ensure pipe with pipe water supply.
performance specification:
Nominal pressure: PN16
Applicable temperature: 80 鈩 or less
Applicable medium: water
Shut down air pressure: 0.1 MPa
Minimum water seal pressure: 0.02 MPa
Major parts material:
Body and bonnet, exhaust - QT450-10
Floating ball, the piston - 0 cr18ni9
Big, small mouth sealing ring - NBR/EPDM
The tank body – ABS

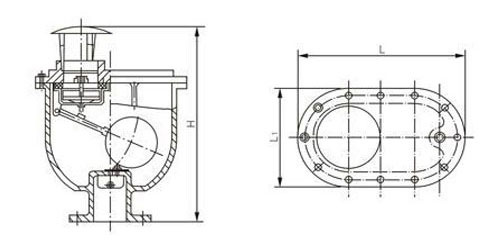

Main outer size
DN 50 80 100 150 200
D3 175 215 230 265 380
H 270 300 310 395 455






N DN D1 D T N-D H A*B


1.6Mpa		 20 G3/4 / / / 260 145*145
25 G1” / / / 260 145*145
50 125 165 19 4-19 320 162*162
65 145 185 19 4-19 320 162*162
80 160 200 19 8-19 365 198*198
