HQ41X Rolling-ball Check Valve
Place of Orign :China
Product name: HQ41X Rolling-ball Check Valve
Product Presentation: HQ41 Sliding Path Roller Type Check Valve uses the rubber covered roller as the disc, when, under the action of the medium, can roll up and down along with the integral sliding path inside the valve so as to open or close it. And it features by good tightness, silent close and no production of water hammer. The body is full water-flow path design, big flow, small resistance and the water head loss is smaller that of the swing type by 50%. It is mountable vertically or horizontally and can be used for cold-water, hot-water, industrial and living sludge pipe networks, especially suitable for the submersible sludge pump. The medium temperature:0~80鈩冦 Purpose: This product is mainly installed in cold water, hot water, the pump outlet of industrial and living sewage pipe network, to prevent the backflow medium, more suitable for diving sewage pump. |
Characteristics:
1, sealed performance is good, silencing shut down, do not produce water hammer.
2, the valve body adopts full flow channel, large flow, small resistance, the water loss is 50% less than swing.
Performance specification:
DN | 50-300 | mm | ||
nominal pressure | 1.0 | 1.6 | 2.5 | Mpa |
shell test | 1.5 | 2.4 | 3.75 | |
sealing test | 1.1 | 1.76 | 2.75 | |
gas seal test | 0.6 | 0.6 | 0.6 | |
applicable temperature | 0-80 | 鈩 | ||
applicable medium | water |
Part name | Material |
Body | Grey cast iron/ductile iron/cast steel |
Valve ball | Rubber |

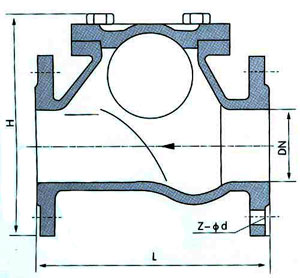

DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
L | 180 | 200 | 260 | 300 | 350 | 400 | 500 | 670 | 830 |
H | 185 | 210 | 245 | 280 | 335 | 400 | 495 | 600 | 715 |
